Item NO.:
Luminor-A80Product Origin:
ChinaColor:

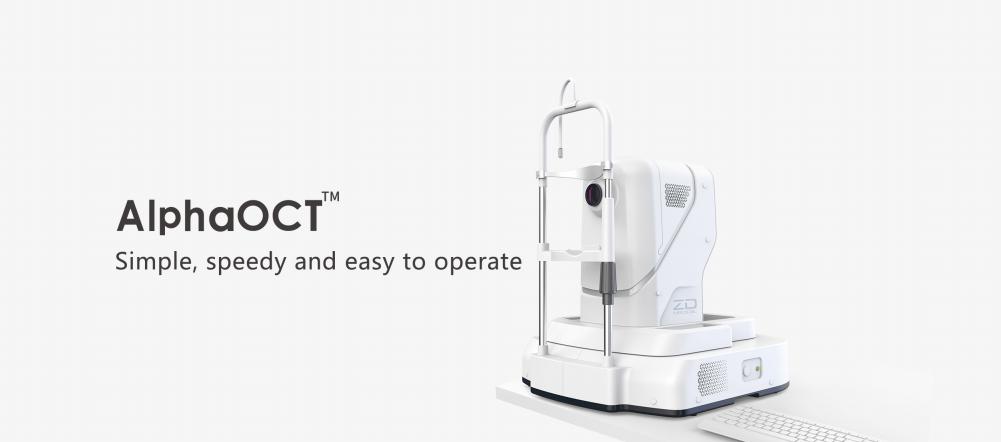

whiteThe AlphaOCT™ is an ophthalmic optical coherence tomography scanner tailored for rapid screening of fundus diseases in outpatient clinics. It is easy to use, clear in image,smooth and delicate in operation,and equipped with professional analysis software to meet the requirements of OCT in the clinical examination and analysis of ophthalmology.
Common fundus disorder
Diagnosis of fundus disease
■ CNV [Choroidal neovascularization]
AlphaOCT™ accurately identifies retinal disorders, helps to screen and reduce the missed diagnosis of retinal diseases at the outpati-ent clinic, and can greatly improve the efficiency of clinical use.
■ DR [Diabetic Retinopathy]

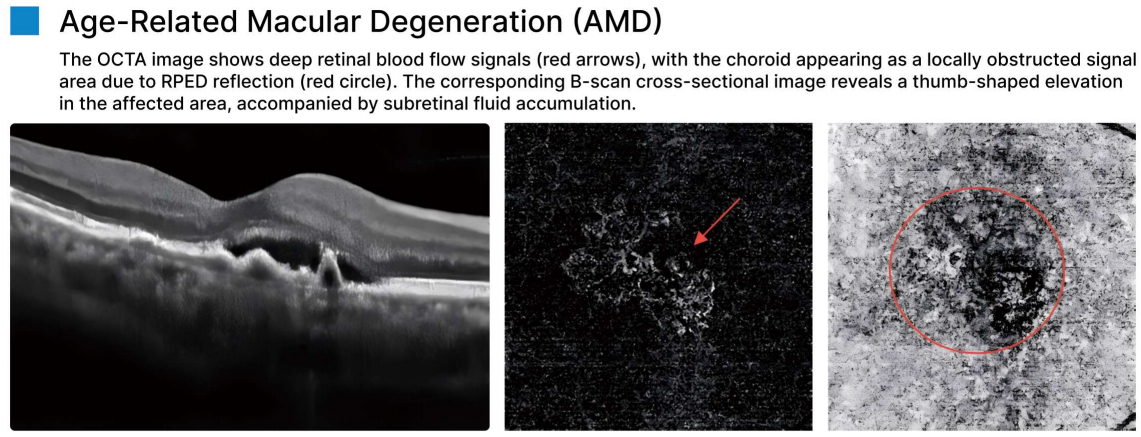

■ AMD [Age-related macular degeneration]
■ PCV [Polypoid choroidal vasculopathy]
■ CSC [Central serous retinopathy]
■ Retinal cleft palate

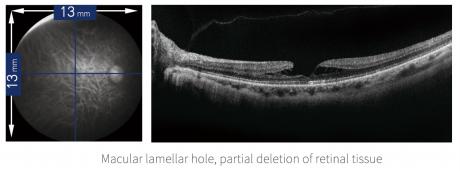

■ Macular hole
■ Vitreous macular traction
Optimized functions, popular and practical
Smart reading (Optional)
A fundus disease intelligence software developed based on deep learning to identify specific structures of retinal images faster and more efficiently.
Technical Parameters
|
measurement characteristics |
Axial resolution:≤6μm(in tissue) |
|
Horizontal resolution:≤13μm |
|
|
scanning characteristics |
Maximum A scanning speed:20KHz, tolerance ±5% |
|
Maximum canning depth:2.65mm (in tissue),tolerance ± 3% |
|
|
Maximum scanning range: 13mm × 13mm, tolerance ± 5% |
|
|
Light source characteristics |
Center wavelength:760nm, tolerance ± 10nm |
|
Half width:35nm, tolerance ± 5nm |
|
|
Optical power: ≤740μw (at the cornea) |
|
|
Refractive compensation range:≥-12D～+12D |
|
|
Fundus image Light source |
Center wavelength 760nm, tolerance ± 5nm |
|
Optical power: ≤50μw |
|
|
Retinal thickness measurement |
Retinal thickness measurement tolerance: ± 3%(in tissue) |
|
Retinal thickness measurement repeatability:≤2% |
OCT Luminor-D60 is a new generation OCT,with upgraded function,clear image and smooth system. It is equipped with professional analysis software to accurately identify retinal diseases, help screen and reduce the missed diagnosis of the initial examination, which can greatly improve the clinical use efficiency.
It is an ophthalmological Scanner adopting the technology of optical coherence tomography, which specializes in rapid screening of eye fundus diseases for outpatient service. It’s easy to use. Images of eye fundus are clear. work smoothly and delicately. This device is equipped with professional analysis software, which meets OCT in the ophthalmology clinical common examination and analysis requirements.
Dry-Eye Detector D600 Easily detect dry eyes and guide individual-based treatment proces IFU download Dry-Eye Detector - Instructions for Use
Vein finder helps medical staff find the superficial vein easily, reduce the pain and unnecessary venipuncture attempts, it also improves working efficiency and keeps good relationship between patients and hospitals.
It is an ophthalmological Scanner adopting the technology of optical coherence tomography, which specializes in rapid screening of eye fundus diseases for outpatient service. It’s easy to use. Images of eye fundus are clear. work smoothly and delicately. This device is equipped with professional analysis software, which meets OCT in the ophthalmology clinical common examination and analysis requirements.
OCT Luminor-D60 is a new generation OCT,with upgraded function,clear image and smooth system. It is equipped with professional analysis software to accurately identify retinal diseases, help screen and reduce the missed diagnosis of the initial examination, which can greatly improve the clinical use efficiency.
Vein finder helps medical staff find the superficial vein easily, reduce the pain and unnecessary venipuncture attempts, it also improves working efficiency and keeps good relationship between patients and hospitals.
The Z -CUT Emergency Rescue Cutting Tool is used in the emergency situation to cut and peel off the wound covering and winding, so as to quickly expose the wound and provide timely observation and treatment. The cutting tool helps the ambulance staff to rescue the patients without moving the patient's body,
