Item NO.:
oct2030Product Origin:
ChinaColor:

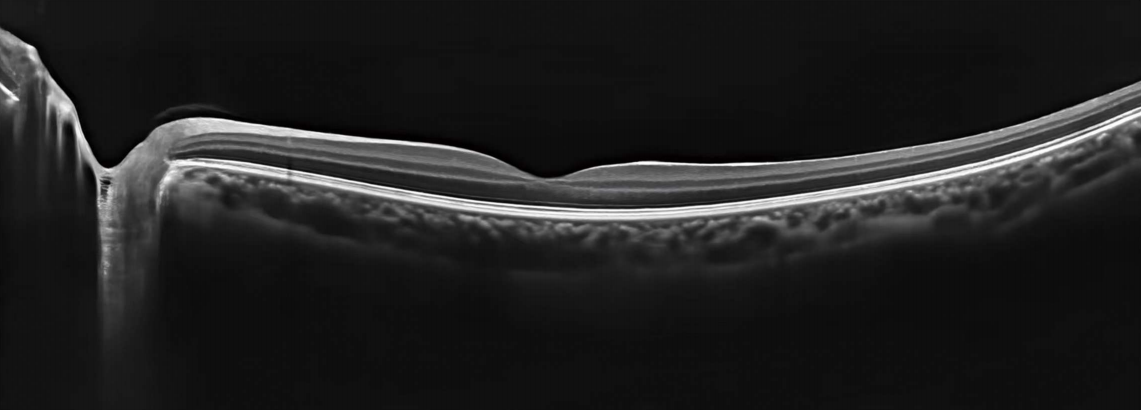

whiteThe AlphaOCT™ is an ophthalmic optical coherence tomography scanner tailored for rapid screening of fundus diseases in outpatient clinics. It is easy to use, clear in image,smooth and delicate in operation,and equipped with professional analysis software to meet the requirements of OCT in the clinical examination and analysis of ophthalmology.
Common fundus disorder
Diagnosis of fundus disease
■ CNV [Choroidal neovascularization]
AlphaOCT™ accurately identifies retinal disorders, helps to screen and reduce the missed diagnosis of retinal diseases at the outpati-ent clinic, and can greatly improve the efficiency of clinical use.
■ DR [Diabetic Retinopathy]
■ AMD [Age-related macular degeneration]
■ PCV [Polypoid choroidal vasculopathy]
■ CSC [Central serous retinopathy]
■ Retinal cleft palate
■ Macular hole
■ Vitreous macular traction
Optimized functions, popular and practical
Smart reading (Optional)
A fundus disease intelligence software developed based on deep learning to identify specific structures of retinal images faster and more efficiently.
Technical Parameters
|
measurement characteristics |
Axial resolution:≤6μm(in tissue) |
|
Horizontal resolution:≤13μm |
|
|
scanning characteristics |
Maximum A scanning speed:20KHz, tolerance ±5% |
|
Maximum canning depth:2.65mm (in tissue),tolerance ± 3% |
|
|
Maximum scanning range: 13mm × 13mm, tolerance ± 5% |
|
|
Light source characteristics |
Center wavelength:760nm, tolerance ± 10nm |
|
Half width:35nm, tolerance ± 5nm |
|
|
Optical power: ≤740μw (at the cornea) |
|
|
Refractive compensation range:≥-12D～+12D |
|
|
Fundus image Light source |
Center wavelength 760nm, tolerance ± 5nm |
|
Optical power: ≤50μw |
|
|
Retinal thickness measurement |
Retinal thickness measurement tolerance: ± 3%(in tissue) |
|
Retinal thickness measurement repeatability:≤2% |
OCT 2020 is a new generation OCT,with upgraded function,clear image and smooth system. It is equipped with professional analysis software to accurately identify retinal diseases, help screen and reduce the missed diagnosis of the initial examination, which can greatly improve the clinical use efficiency.
It is an ophthalmological Scanner adopting the technology of optical coherence tomography, which specializes in rapid screening of eye fundus diseases for outpatient service. It’s easy to use. Images of eye fundus are clear. work smoothly and delicately. This device is equipped with professional analysis software, which meets OCT in the ophthalmology clinical common examination and analysis requirements.
ZD medical R&D a new technology, which uses IPL intense pulsed light treatment on the eyelid margin, causing the abnormal blood vessels of secrete inflammatory factors close. Reduce bacterial invasion, and improve patients' dry eye conditions.
Dry-Eye Detector D600 Easily detect dry eyes and guide individual-based treatment proces
The heating system of the ophthalmic atomizer uses an atomizer with a temperature-controlled heating system (with a mist temperature control of 30-45 degrees) and a disposable atomizing eye mask, which continuously atomizes water and dispenses to heat and moisturize the eye, and cooperate with the product. Soothes the skin around the eyes and relieves dryness
Non-invasive eye detects. Assist doctors to diagnose and screen dry eye disease. Take photos of the blepline glands clearly, which can provide a more accurate basis on the doctor's diagnosis of MGD. Generate high-definition videos images of tear membrane lipid layer. Observe the thickness lipid layer and other characteristics.
The Z -CUT Emergency Rescue Cutting Tool is used in the emergency situation to cut and peel off the wound covering and winding, so as to quickly expose the wound and provide timely observation and treatment. The cutting tool helps the ambulance staff to rescue the patients without moving the patient's body,
Vein finder helps medical staff find the superficial vein easily, reduce the pain and unnecessary venipuncture attempts, it also improves working efficiency and keeps good relationship between patients and hospitals. （The support stents can be sold separately.)
